No.W2E200-HK86-01 ;Motor:M2E068-BF;Brand:ebmpapst ; Motor bearing : Ball bearing; Size:200mm ;Weight:2.0kg;Type:axial fan;Blade material:Sheet steel,painted black;Fan housing material:Die-cast aluminum,painted black; Nominal voltage :115VAC;Speed:2550/2800RPM;Power consumption:64/80W; Degree of protection: IP44;Insulation class:B;Min. ambient temperature / °C~Max. ambient temperature / °C:-25~65℃; We are professional Fan supplier,
Product Parameter:

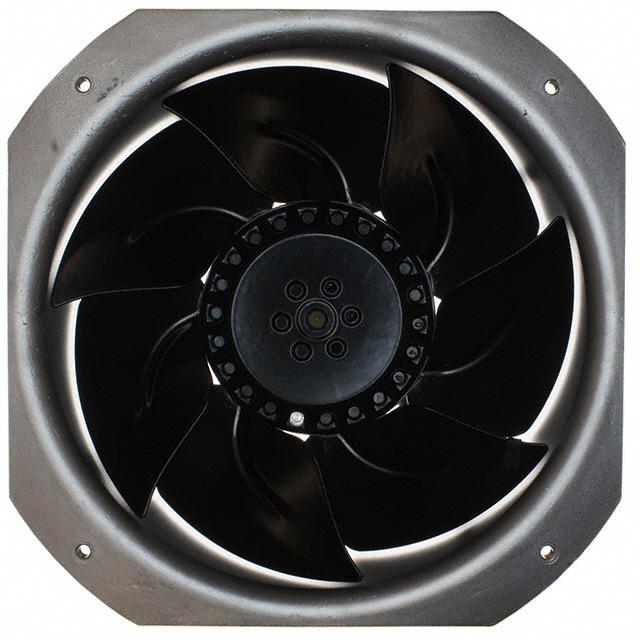

Model.W2E200-HK86-01
Motor:M2E068-BF
Type:Axial Fan
Brand: ebm-papst
Phase:1
Nominal voltage:115VAC
Frequency:50/60Hz
Speed:2550/2800RPM
Power consumption:64/80W
Current draw:0.58/0.7A
Capacitor voltage:220VDB
Max.back pressure:80/95Pa
Weight:2.0kg
Size:200mm
Motor size :68
Blade material:Sheet steel,painted black
Housing material:Die-cast aluminum
Degree of protection:IP44
Number of blades:7
Insulation class:B
Motor bearing:Ball bearing
Min. ambient temperature / °C~Max. ambient temperature / °C:-25~65℃
